Keywords:
Deep Groove Ball Bearing
| Item No. | 6802 2RS/ZZ/OPEN Bearing |
| 68 Series Ball Bearing Suitable For Complex Environment | |
| Dimension: | 15*24*5mm |
| Clearance: | According to client's requirment |
| Material: | Gcr15 |
| Quality: | P6 Z3V3, P5 Z4V4 |
Renhe Deep Groove Ball Bearing Specification
Bearing Size：6802-2RS
Dimension (d): 15mm
Dimension (D): 24mm
Dimension (B): 5mm
Rated dynamic load: 466 lbs
Rated Static Load: 282 lbs
Limit speed (grease): 18,600 RPM
Ultimate speed (oil): 31000 RPM
Weight: 0.01 lb
Matching number: 6802RS, 6802LU, 6802LB, 6002DU, 6802VV, 61802.2RSJ1, 6802EE, 6802 2RU, 61802.2RSR, 6802DDU, 6802LLB, 6802-2NSE, 6802LLU, 6802-2NSL, 618

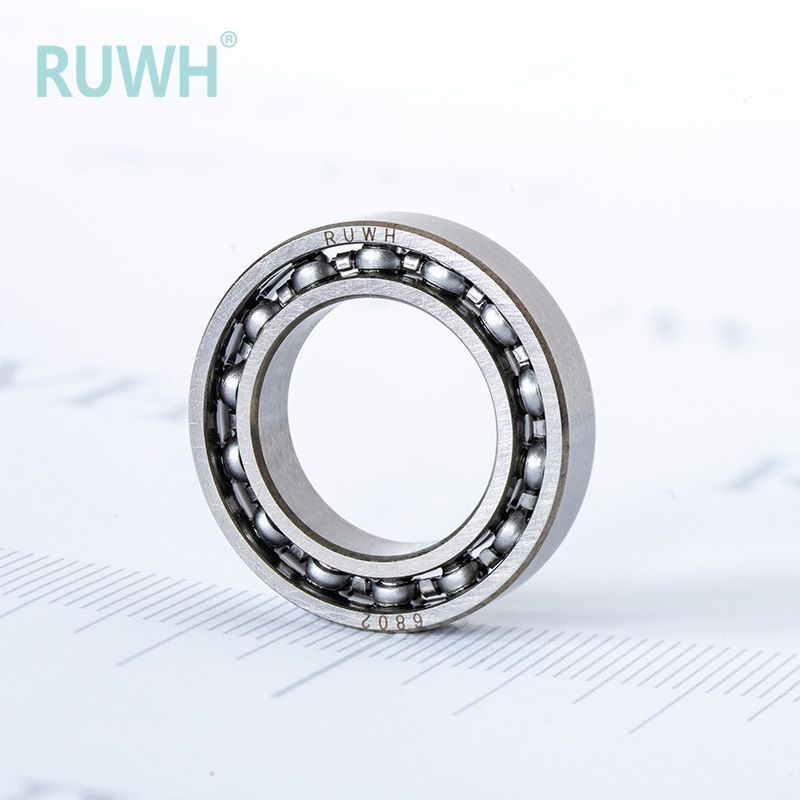

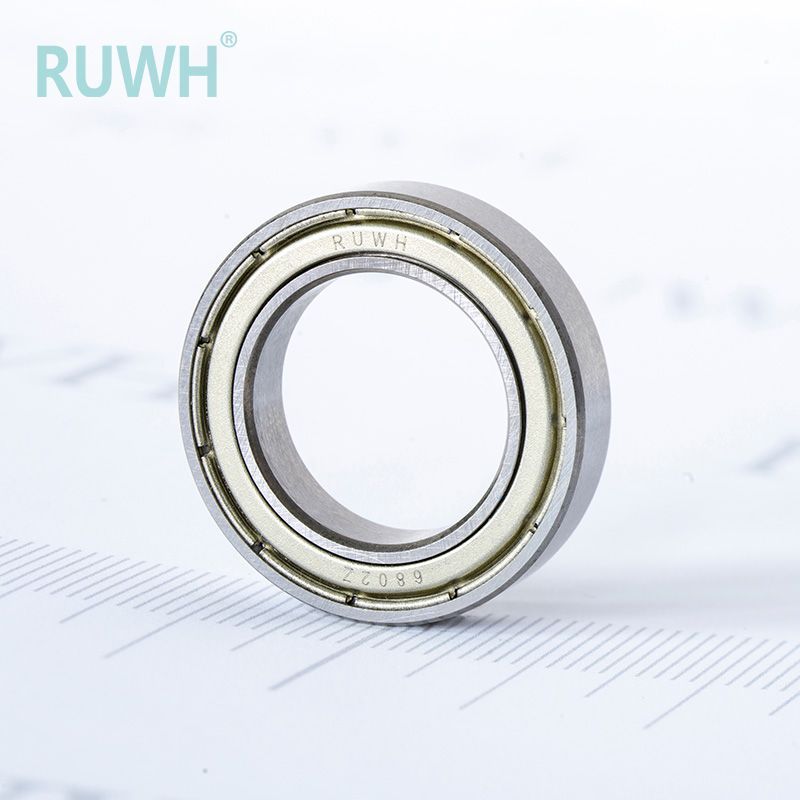

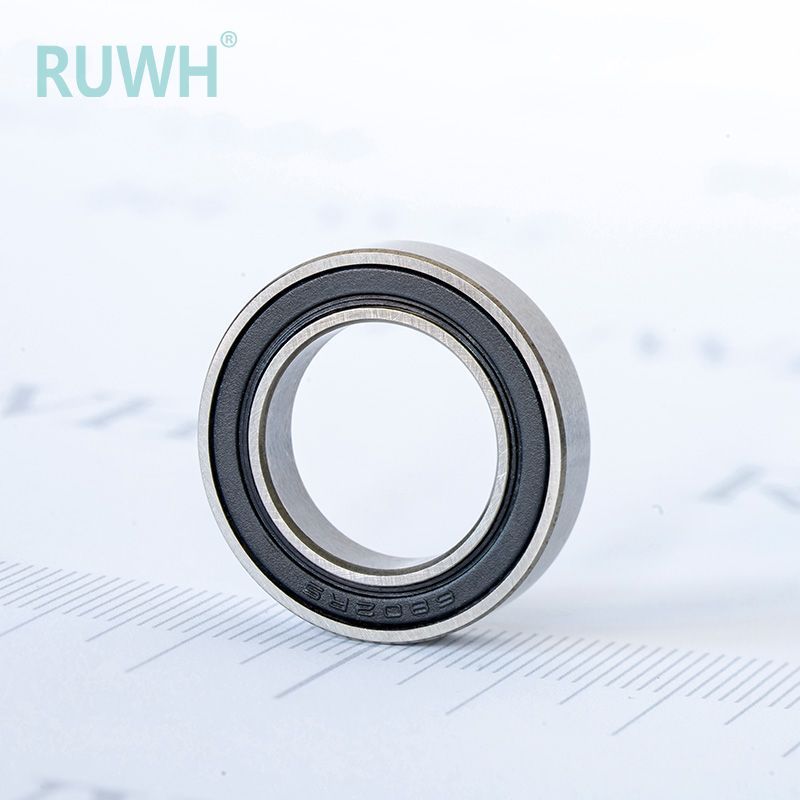

This 6802-2RS ball bearing is a high precision, high quality sealed deep groove 15x24x5 ball bearing. 6802-2RS ball bearings are widely used in industrial and automation applications. They are designed to reduce rotational friction and support loads. As the inner bearing housing ring rotates, the balls rotate with it. Seals located on both sides of the ball bearing keep the bearing lubricant inside while keeping unwanted contents out.
Rolling bearings use rolling elements to maintain separation between moving parts to reduce rotational friction and to support radial and axial loads. These elements can be of one of the following types: spherical, cylindrical, spherical, barrel, needle, arbor or tapered. All rolling bearings are open, shielded or sealed. Sealed and shielded bearings are lubricated with oil or grease at the bearing plant, while open bearings should be lubricated at the appropriate location and the lubrication reapplied periodically depending on use. Shields protect the working parts of the bearing from environmental debris that may be introduced, which can reduce the speed and life of the ball bearing. Rolling bearings are used in a wide range of applications, from agricultural machinery to conveying equipment, electric motors, CNC machinery, trucks, mining equipment, trains, and robots.
The quality class of electric motors means that the bearings must operate at extremely low noise levels and with minimal or no vibration. To achieve this, the raceways of the 6802-2RS bearings are precision honed to an excellent surface finish.
RUWH 6802 2RS Bearing Features | Hot Sale |
| Suitable For Precision | |
| Low Noise | |
| Stable Quality | |
| High Speed | |
| Water Proof | |
| For Transmission Parts | |
| Efficient Operation | |
| Long-Lasting Silence | |
| Electric Motor Quality | |
| High Temperature Resistance | |
| Uniform Hardness | |
| Wear Resistance | |
| Corronsion-Resistant | |
| Long-Term Performance | |
| Tube Packing | |
| Single Box Packing | |
| Long Life | |
RUWH 6802 2RS Bearing Advantage | Emq Quality |
| 100% Fully Auto-Inspection | |
| Devliery In 48hours | |
| 11 Million Sets Per Month | |
| All Raw Materials Are Purchased And Controlled By Ruwh | |
| 4 Heat Treatment Lines | |
| Automatic Production Line | |
| Stable Raw Material Supplier | |
| 5s Management | |
| Iatf16949 Certificate | |
| Production And Inspection In Strict Accordance With The Process | |
| Professional After-Sales | |
| Sufficient Stock | |
| Warranty | |
| Free Replacement Within 1 Year | |
| Reply Within 48hours If There Is Problem | |
| The Motor Bearing Will Run For 30,000hours | |
| Maintenance Free Solutions | |
RUWH 6802 2RS Bearing Application | For Automotive |
| For Household Appliances | |
| For Pumps | |
| For Gearboxes | |
| For Electric Motors & Generators | |
| For Electric Power Tools | |
| For Office Equipments | |
| For Heavy Vehicles | |
| For Motorcycles | |
| For Diy & Garden Tools | |
| For Conveyors | |
| For Lifts | |
| For Sports & Exercise | |
| For Machineries |
| Certification: | ITAF16949 |
| Description: | deep groove ball bearing |
| MOQ: | 3000pcs |
| Price: | Negotiate |
| Packing: | Tube packing or single color box/carton/pallet |
| Delivery Time: | 48hours after receipt payment |
| Payment Terms: | L/C,T/T |
| Capacity: | 13 million per month |
| Cage: | SPCC |
| Grease qty: | 30% as usual |
| Long life: | Reduce replacement frequency and maintenance costs |
| Noise Grades | Z3,Z4 |
| Vibration Grades | V3,V4 |
| Precision | P6(ABEC-3),P5(ABEC-5) |
| Application: | Automotive,motors, pumps,household appliances, internal combustion engines, transport vehicles,gearboxes.transmission, instrumentation, roller skates,electric motors,electric Power Tools,DIY & Garden tools,Conveyors,lifts |
| Features: | simple configuration,high speed,less cefficient of friction,less vibration and noise |
