Keywords:
Deep Groove Ball Bearing
| Item No. | 6801 2RS/ZZ/OPEN Bearing |
| 68 Series Thin-Walled Bearings | |
| Dimension: | 12*21*5mm |
| Clearance: | According to client's requirment |
| Material: | Gcr15 |
| Quality: | P6 Z3V3, P5 Z4V4 |
Renhe 6801 Deep Groove Ball Bearing Specification
Size: Bore Diameter 12mm x Outside Diameter 21mm x Width 5mm
Matching number: 6801RS, 6801LLU, 6801LLb, 6801DDU, 6801VV, 61801.2RSJ1, 6801EE, 6801-2RU, 61801.2RSR, 6801-2NSE, MR6801-2RS, 6801-2NSL
Common applications: motors, camera mounts, pulleys, alternators, generators, fans, medical equipment, wheels, 3D printing, conveyor rollers, printers, CNC machinery, RC hobbies, robots, etc.

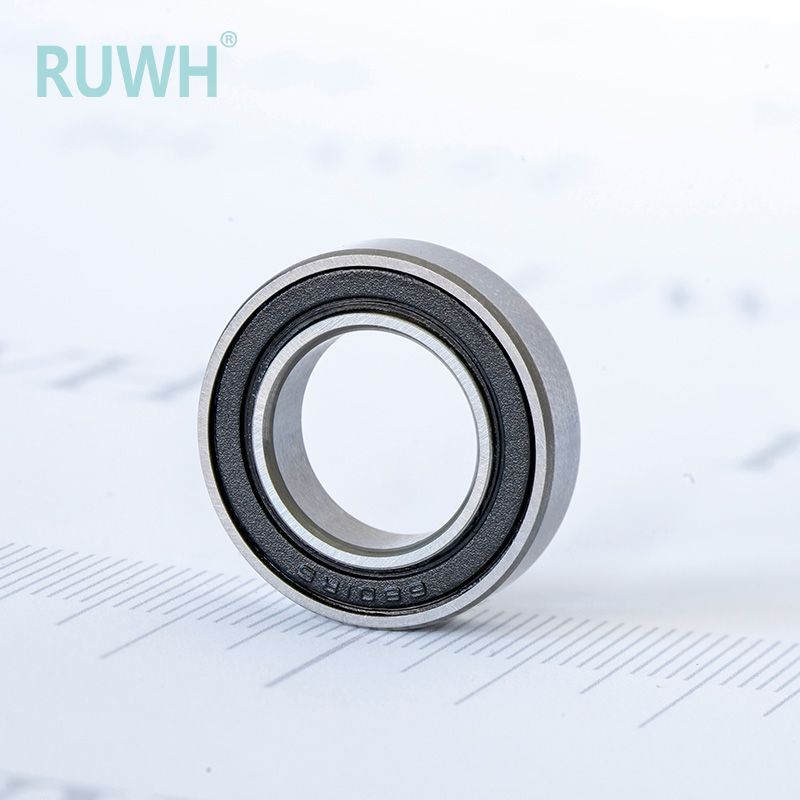

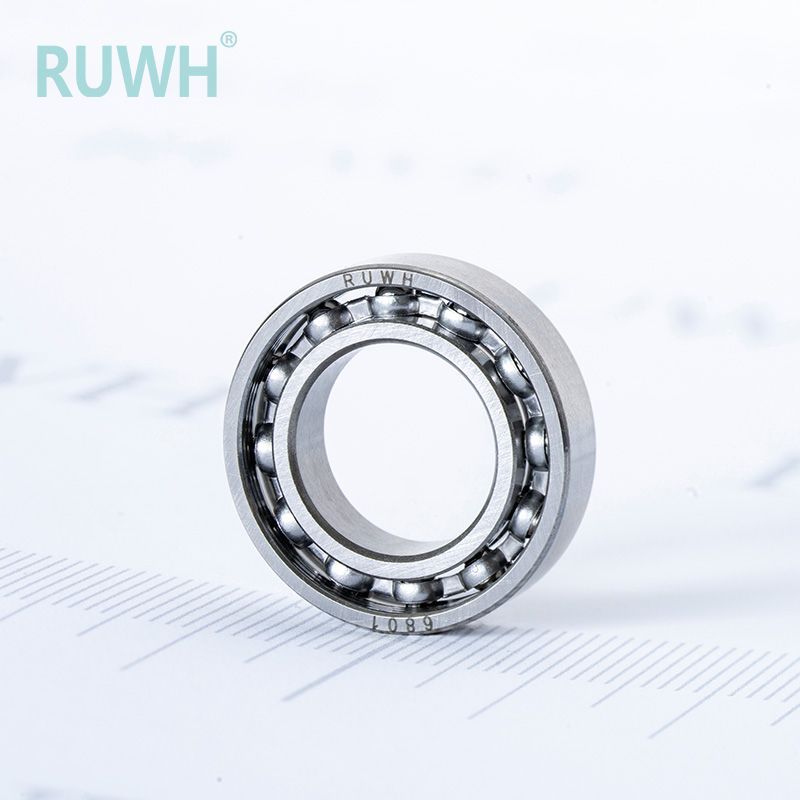

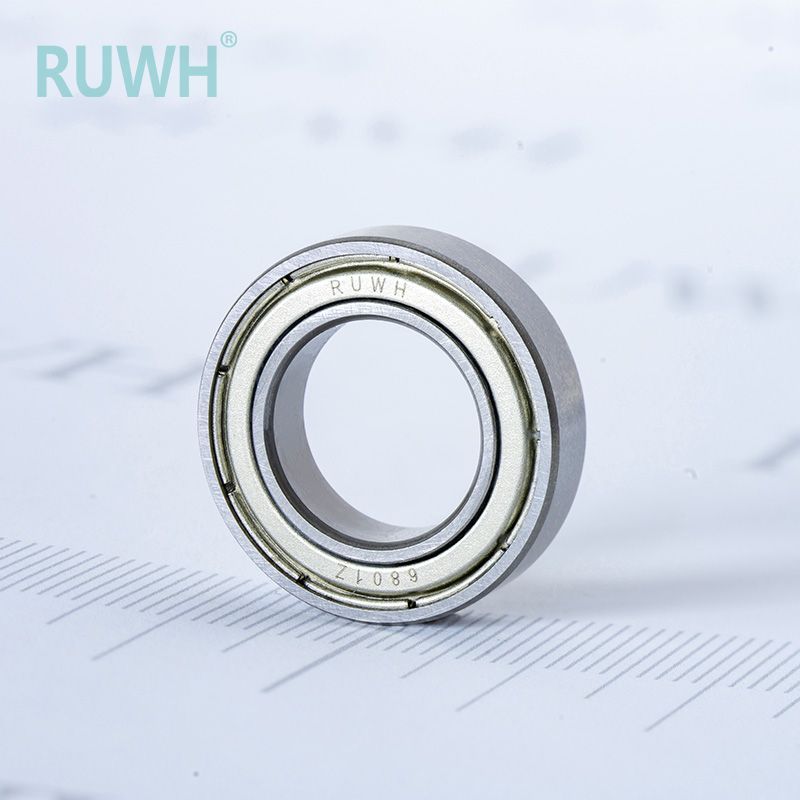

The 6801-2RS and 6801-ZZ are a 12 mm ball bearing that can be used in many rotary and factory automation applications. 6801-2RS ball bearings have two contact rubber seals on each side of the ball bearing. 6801-ZZ ball bearings have two non-contact metal shields on each side of the ball bearing. If your application requires a 6801 ball bearing with only one seal or shield, you can obtain the ball bearing and remove one of the shields or seals. This 12 mm inch ball bearing of high quality, with an internal dimension of 12 mm X external dimension of 21 mm X width of 5 mm is an open ball bearing designed for high speeds and high dynamic loads to meet the needs of electric motors.
6801-2RS bearings are used in a wide range of applications, from water jet machinery to 3D printing equipment, electric motors, CNC machinery, trucks, medical equipment, RC Hobby, robotic systems, dental equipment, camera mounts, rolling mills, ship rudder shafts and aggregate crushers, motorcycles, household appliances, power tools and machines, gearboxes, etc.
| Certification: | ITAF16949 |
| Description: | deep groove ball bearing |
| MOQ: | 3000pcs |
| Price: | Negotiate |
| Packing: | Tube packing or single color box/carton/pallet |
| Delivery Time: | 48hours after receipt payment |
| Payment Terms: | L/C,T/T |
| Capacity: | 13 million per month |
| Cage: | SPCC |
| Grease qty: | 30% as usual |
| Long life: | Reduce replacement frequency and maintenance costs |
| Noise Grades | Z3,Z4 |
| Vibration Grades | V3,V4 |
| Precision | P6(ABEC-3),P5(ABEC-5) |
| Application: | Automotive,motors, pumps,household appliances, internal combustion engines, transport vehicles,gearboxes.transmission, instrumentation, roller skates,electric motors,electric Power Tools,DIY & Garden tools,Conveyors,lifts |
| Features: | simple configuration,high speed,less cefficient of friction,less vibration and noise |
