Keywords:
Deep Groove Ball Bearing
| Material: | Chrome Steel |
| Precision Rating | P6 P5 P4 |
| Seals Type | ZZ 2RS OPEN |
| Noise level: | ZV1 ZV2 ZV3 |
| Clearance | C2 C0 C3 C4 C5 |
| Lubricatio | Oil Grease |
| Feature | Long Life High Speed |

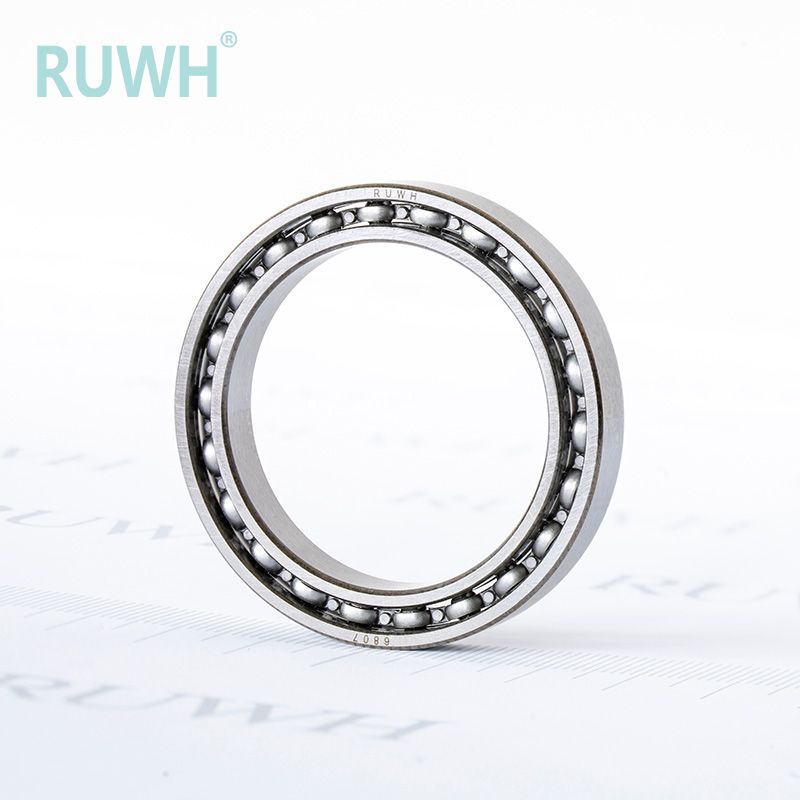

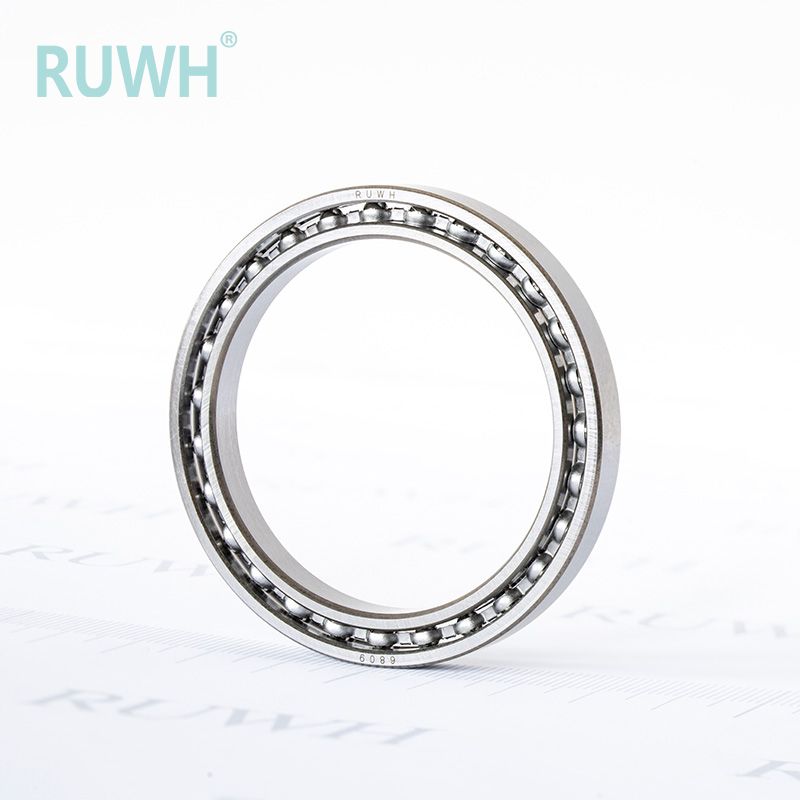

Renhe Deep Groove Ball Bearing Specification
When you're looking for a ball bearing manufacturer for deep groove ball bearings in China, why not look for a company that offers you all the quality of a reputable manufacturer at a substantial discount?
Our 68 series deep groove ball bearings are exactly what you need for your OEM application or distribution channel. See the chart below for an at-a-glance look at all the sizes and specifications of these ball bearings so you can place orders as needed. Any combination of closures can be used, including the following closures.
One Shield
Two Shields
One Non-Contact Seal
Two Non-Contact Seals
One Contact Seal
Two Contact Seals
One Low Torque Seal
Two Low Torque Seals
| Item Number | Dimension （mm) | Load Rating | Limiting Speed(rpm) | Weight | ||||||
| Bore | Outer Diameter | Width | Radius | Dynamic | Static | Grease | Oil | （kg） | ||
| d | D | B | rmin | Cr (N) | Cor (N) | Open Z ZZ RZ 2RZ | RS 2RS | Open Z RZ RS | ||
| 685 | 5 | 11 | 3/5 | 0.15 | 775 | 320 | 46000 | -- | 53000 | 0.0012/0.0019 |
| 686 | 6 | 13 | 3.5/5 | 0.15 | 880 | 410 | 40000 | -- | 50000 | 0.0019/0.0027 |
| 687 | 7 | 14 | 3.5/5 | 0.15 | 930 | 460 | 40000 | -- | 45000 | 0.0021/0.0030 |
| 688 | 8 | 16 | 4/5 | 0.2 | 1330 | 650 | 36000 | -- | 43000 | 0.0033/0.0040 |
| 689 | 9 | 17 | 4/5 | 0.2 | 1400 | 730 | 36000 | -- | 43000 | 0.0035/0.0044 |
| 6800 | 10 | 19 | 5 | 0.3 | 1820 | 930 | 34000 | 24000 | 40000 | 0.0050 |
| 6801 | 12 | 21 | 5 | 0.3 | 1910 | 1040 | 32000 | 20000 | 38000 | 0.0060 |

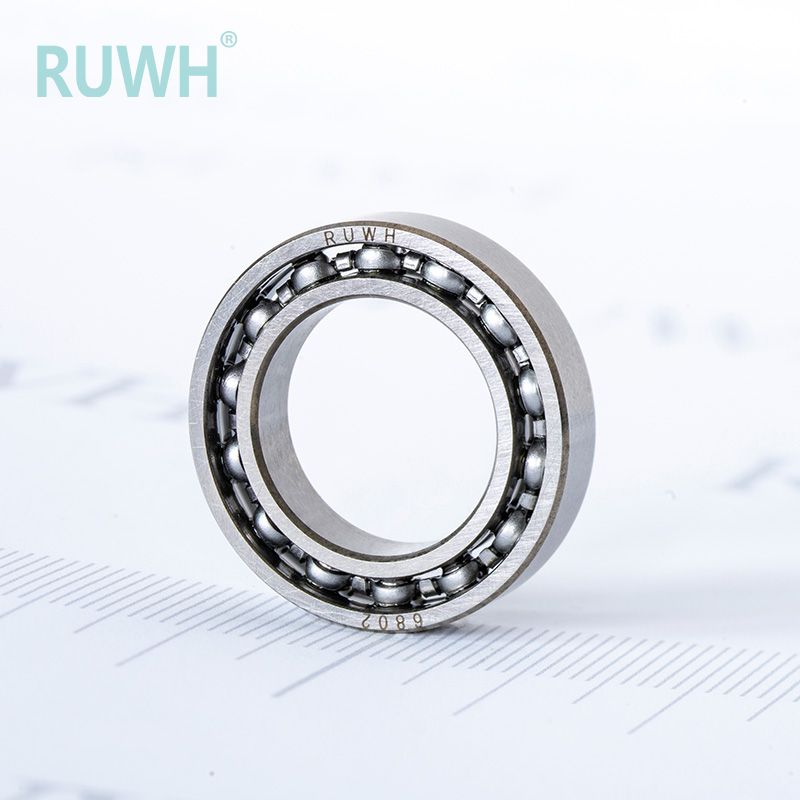

| 6802 | 15 | 24 | 5 | 0.3 | 2070 | 1260 | 28000 | 17000 | 34000 | 0.0070 |

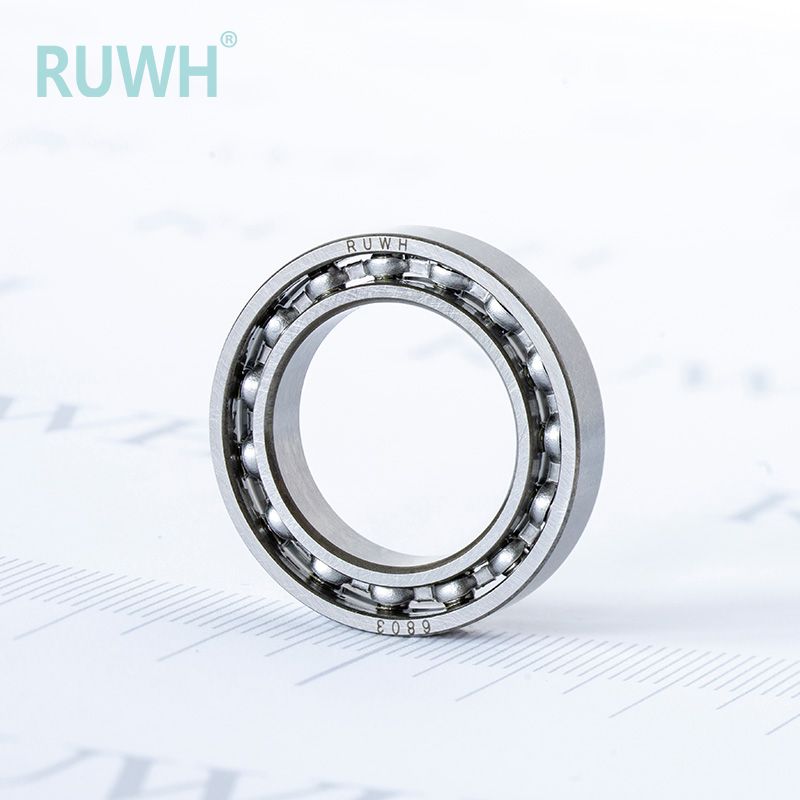

| 6803 | 17 | 26 | 5 | 0.3 | 2220 | 1460 | 26000 | 15000 | 30000 | 0.0070 |

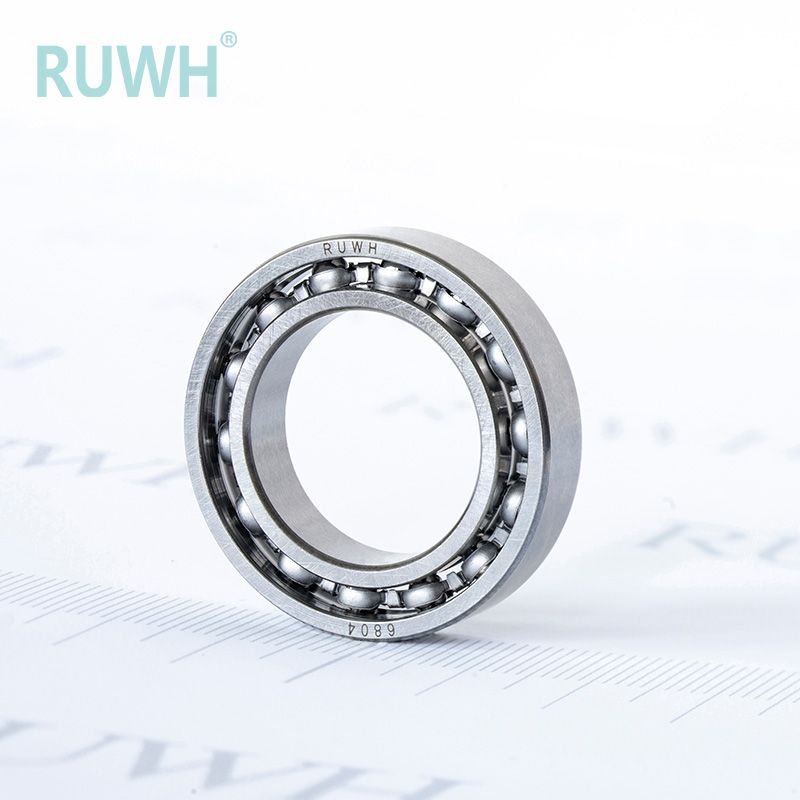

| 6804 | 20 | 32 | 7 | 0.3 | 3990 | 2480 | 22000 | 13000 | 26000 | 0.0170 |

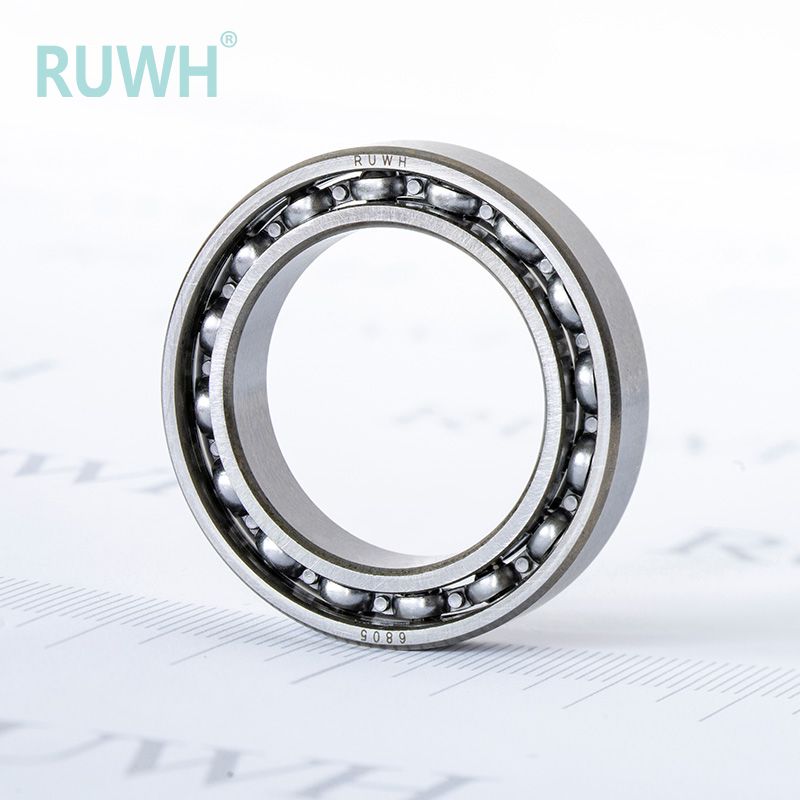

| 6805 | 25 | 37 | 7 | 0.3 | 3660 | 2650 | 18000 | 10000 | 22000 | 0.0210 |

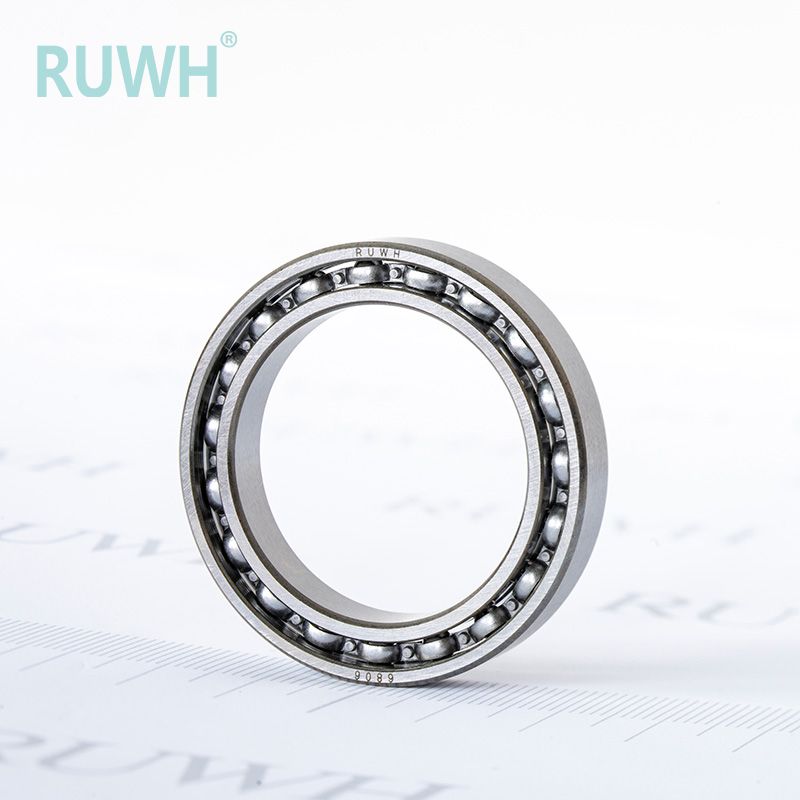

| 6806 | 30 | 42 | 7 | 0.3 | 4720 | 3600 | 15000 | 9000 | 18000 | 0.0240 |
| 6807 | 35 | 47 | 7 | 0.3 | 4950 | 4050 | 14000 | 7500 | 16000 | 0.0270 |

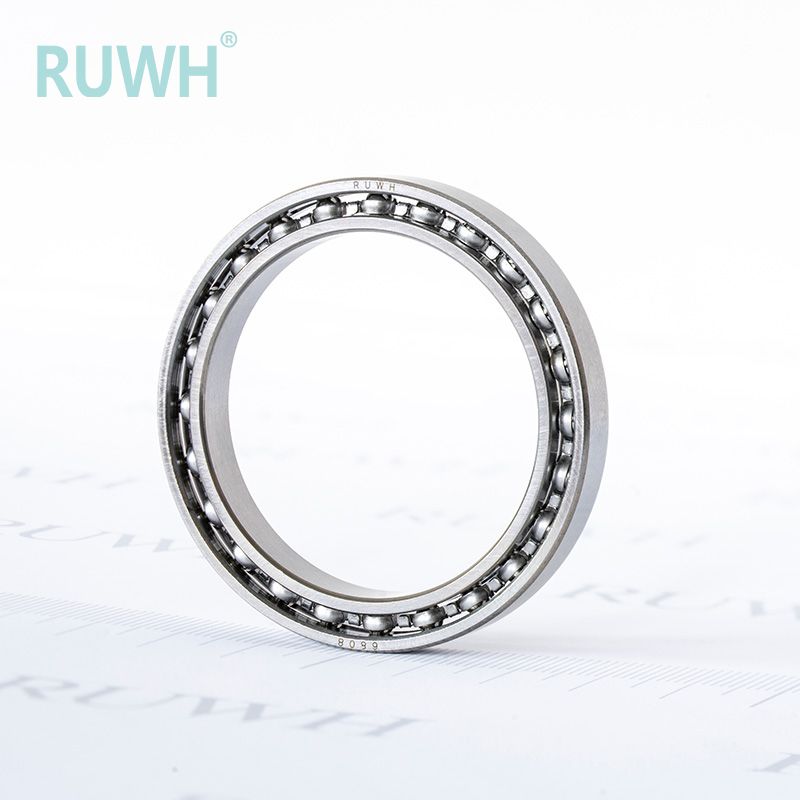

| 6808 | 40 | 52 | 7 | 0.3 | 5140 | 4390 | 12000 | 6700 | 14000 | 0.0310 |
| 6809 | 45 | 58 | 7 | 0.3 | 6440 | 5650 | 11000 | 6000 | 13000 | 0.0380 |

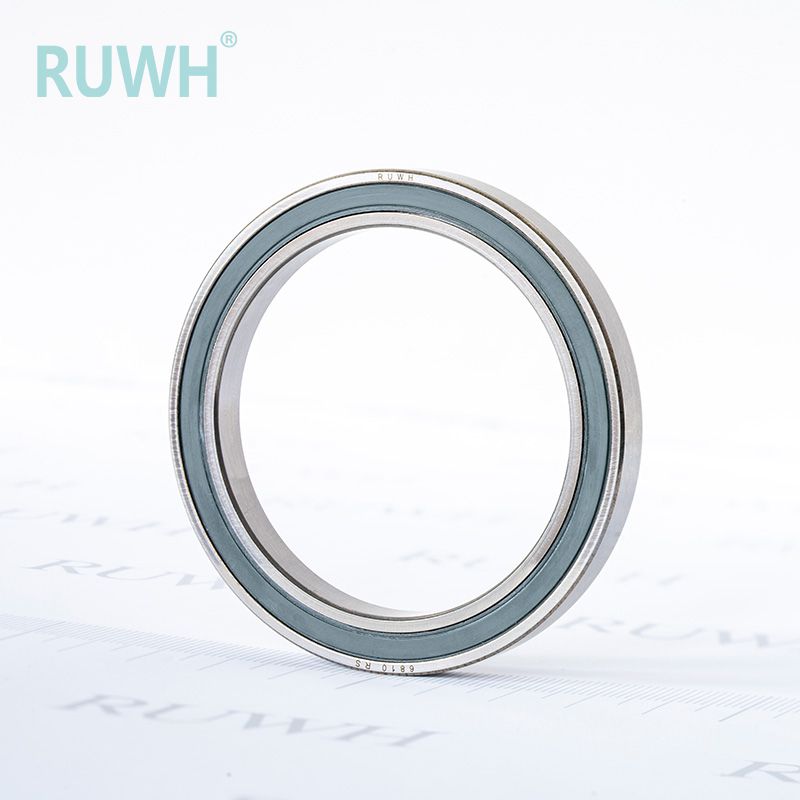

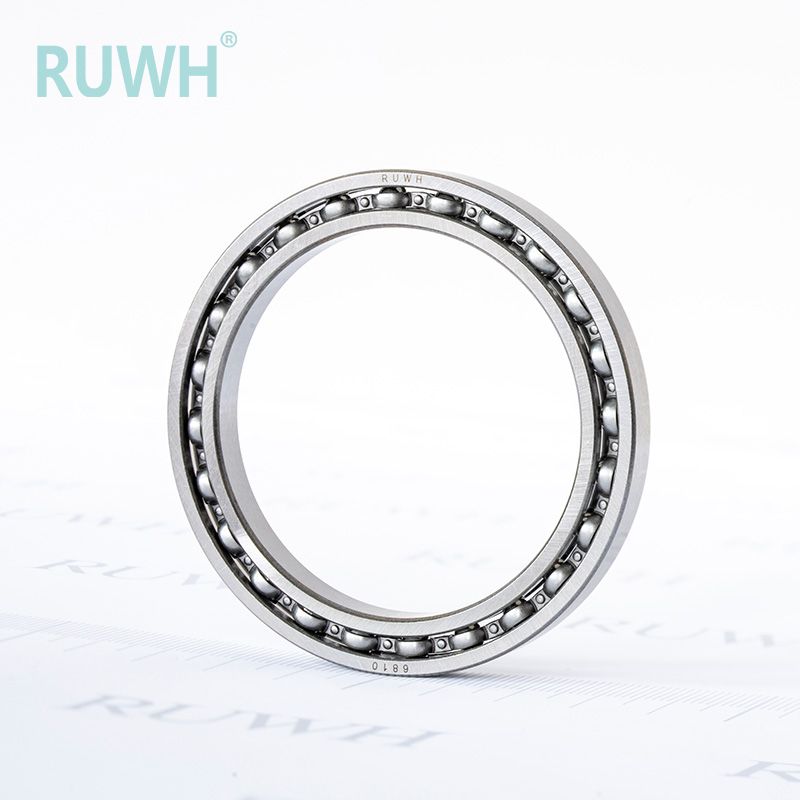

| 6810 | 50 | 65 | 7 | 0.3 | 6600 | 6080 | 9500 | 5300 | 11000 | 0.0500 |
| Certification: | ITAF16949 |
| Description: | deep groove ball bearing |
| MOQ: | 3000pcs |
| Price: | Negotiate |
| Packing: | Tube packing or single color box/carton/pallet |
| Delivery Time: | 48hours after receipt payment |
| Payment Terms: | L/C,T/T |
| Capacity: | 13 million per month |
| Cage: | SPCC |
| Grease qty: | 30% as usual |
| Long life: | Reduce replacement frequency and maintenance costs |
| Noise Grades | Z3,Z4 |
| Vibration Grades | V3,V4 |
| Precision | P6(ABEC-3),P5(ABEC-5) |
| Application: | Automotive,motors, pumps,household appliances, internal combustion engines, transport vehicles,gearboxes.transmission, instrumentation, roller skates,electric motors,electric Power Tools,DIY & Garden tools,Conveyors,lifts |
| Features: | simple configuration,high speed,less cefficient of friction,less vibration and noise |
RUWH 68 Series Bearing Features | Hot Sale |
| Suitable For Precision | |
| Low Noise | |
| Stable Quality | |
| High Speed | |
| Water Proof | |
| For Transmission Parts | |
| Efficient Operation | |
| Long-Lasting Silence | |
| Electric Motor Quality | |
| High Temperature Resistance | |
| Uniform Hardness | |
| Wear Resistance | |
| Corronsion-Resistant | |
| Long-Term Performance | |
| Tube Packing | |
| Single Box Packing | |
| Long Life | |
RUWH 68 Series Bearing Advantage | Emq Quality |
| 100% Fully Auto-Inspection | |
| Devliery In 48hours | |
| 11 Million Sets Per Month | |
| All Raw Materials Are Purchased And Controlled By Ruwh | |
| 4 Heat Treatment Lines | |
| Automatic Production Line | |
| Stable Raw Material Supplier | |
| 5s Management | |
| Iatf16949 Certificate | |
| Production And Inspection In Strict Accordance With The Process | |
| Professional After-Sales | |
| Sufficient Stock | |
| Warranty | |
| Free Replacement Within 1 Year | |
| Reply Within 48hours If There Is Problem | |
| The Motor Bearing Will Run For 30,000hours | |
| Maintenance Free Solutions | |
RUWH 68 Series Bearing Application | For Automotive |
| For Household Appliances | |
| For Pumps | |
| For Gearboxes | |
| For Electric Motors & Generators | |
| For Electric Power Tools | |
| For Office Equipments | |
| For Heavy Vehicles | |
| For Motorcycles | |
| For Diy & Garden Tools | |
| For Conveyors | |
| For Lifts | |
| For Sports & Exercise | |
| For Machineries |
