Keywords:
Deep Groove Ball Bearing

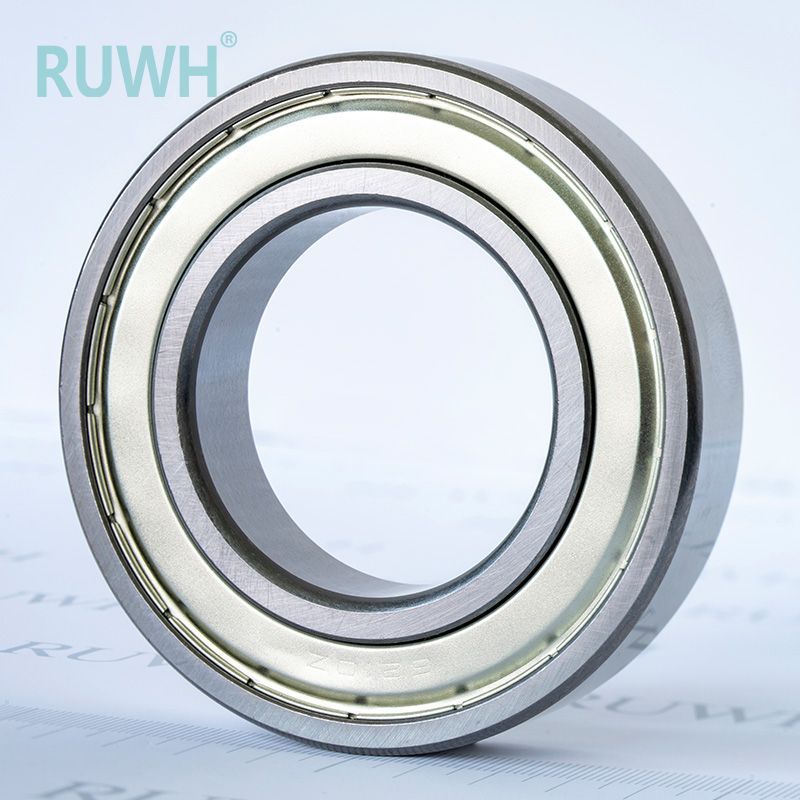

| Item No. | 6210 2RS/ZZ/OPEN Bearing |
| Uniform Hardness 62 Series Bearing | |
| Dimension: | 50*90*20mm |
| Clearance: | According to client's requirment |
| Material: | Gcr15 |
| Quality: | P6 Z3V3, P5 Z4V4 |
Renhe Deep Groove Ball Bearing Specification

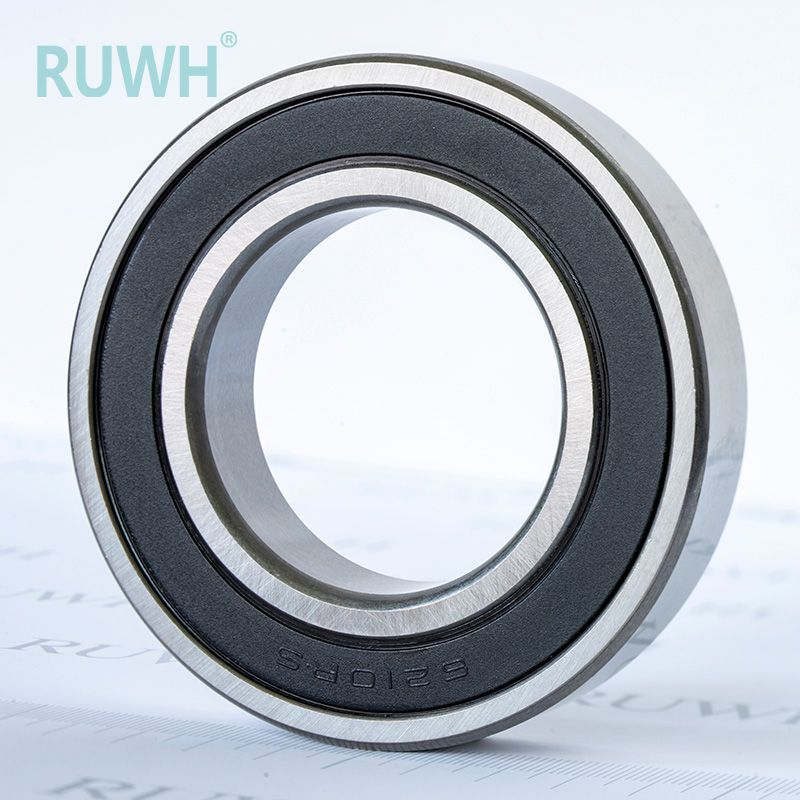

This 6210-2RS ball bearing is a high precision, high quality sealed deep groove 50x90x20 ball bearing manufactured by RUWH in accordance with ABEC 3 accuracy standards. The difference between this 6210-2RS bearing and others is that this bearing is manufactured to ABEC 3 accuracy standards, uses class 10 balls and has an excellent motor quality rating (EMQ). ABEC 3 means that the bearing itself has a micron deviation of -8 microns from its nominal value of 20.000 mm. Almost all ball bearings today are manufactured to the ABEC 1 accuracy standard with a deviation of -10 microns. Simply put, the more accurate a bearing is, the better it will perform in any given application. The Class 10 balls in this bearing are typically only found in ABEC 5 or higher bearings because they have a truer roundness and accuracy. The balls within the bearing share load capacity, so this also increases the operating life compared to the standard grade 25 balls used in other brands. The motor quality rating means that the bearings must operate at extremely low noise levels with minimal or no vibration. To achieve this, the raceways of the 6210-2RS bearings are precision ground to excellent results.
6210-2RS ball bearings have a wide range of applications in industry and automation. They are designed to reduce rotational friction and support loads. The load is evenly distributed over the 25-stage balls, which rotate as the inner ring of the bearing rotates. Seals located on either side of the ball bearing keep the bearing lubricated while keeping unwanted items out. For more information or to get a quote on 6210-2RS bearings, please contact our customer support team and we will be happy to assist you!
Bearing Size: 6210-2RS
Size(D): 50mm
Size(D): 90mm
Size(B): 20mm
Dynamic load rating. 7900 LBS
Static load rating. 5240 LBS
Ultimate speed (grease): 4600 RPM
Weight: 1.02 LBS
RUWH 6210 2RS Bearing Features | Hot Sale |
| Suitable For Precision | |
| Low Noise | |
| Stable Quality | |
| High Speed | |
| Water Proof | |
| For Transmission Parts | |
| Efficient Operation | |
| Long-Lasting Silence | |
| Electric Motor Quality | |
| High Temperature Resistance | |
| Uniform Hardness | |
| Wear Resistance | |
| Corronsion-Resistant | |
| Long-Term Performance | |
| Tube Packing | |
| Single Box Packing | |
| Long Life | |
RUWH 6210 2RS Bearing Advantage | Emq Quality |
| 100% Fully Auto-Inspection | |
| Devliery In 48hours | |
| 11 Million Sets Per Month | |
| All Raw Materials Are Purchased And Controlled By Ruwh | |
| 4 Heat Treatment Lines | |
| Automatic Production Line | |
| Stable Raw Material Supplier | |
| 5s Management | |
| Iatf16949 Certificate | |
| Production And Inspection In Strict Accordance With The Process | |
| Professional After-Sales | |
| Sufficient Stock | |
| Warranty | |
| Free Replacement Within 1 Year | |
| Reply Within 48hours If There Is Problem | |
| The Motor Bearing Will Run For 30,000hours | |
| Maintenance Free Solutions | |
RUWH 6210 2RS Bearing Application | For Automotive |
| For Household Appliances | |
| For Pumps | |
| For Gearboxes | |
| For Electric Motors & Generators | |
| For Electric Power Tools | |
| For Office Equipments | |
| For Heavy Vehicles | |
| For Motorcycles | |
| For Diy & Garden Tools | |
| For Conveyors | |
| For Lifts | |
| For Sports & Exercise | |
| For Machineries |
| Certification: | ITAF16949 |
| Description: | deep groove ball bearing |
| MOQ: | 3000pcs |
| Price: | Negotiate |
| Packing: | Tube packing or single color box/carton/pallet |
| Delivery Time: | 48hours after receipt payment |
| Payment Terms: | L/C,T/T |
| Capacity: | 13 million per month |
| Cage: | SPCC |
| Grease qty: | 30% as usual |
| Long life: | Reduce replacement frequency and maintenance costs |
| Noise Grades | Z3,Z4 |
| Vibration Grades | V3,V4 |
| Precision | P6(ABEC-3),P5(ABEC-5) |
| Application: | Automotive,motors, pumps,household appliances, internal combustion engines, transport vehicles,gearboxes.transmission, instrumentation, roller skates,electric motors,electric Power Tools,DIY & Garden tools,Conveyors,lifts |
| Features: | simple configuration,high speed,less cefficient of friction,less vibration and noise |
