Keywords:
Deep Groove Ball Bearing
| Item No. | 6010 2RS/ZZ/OPEN Bearing |
| Metal Sealed 60 Series Bearings | |
| Dimension: | 50*80*16mm |
| Clearance: | According to client's requirment |
| Material: | Gcr15 |
| Quality: | P6 Z3V3, P5 Z4V4 |

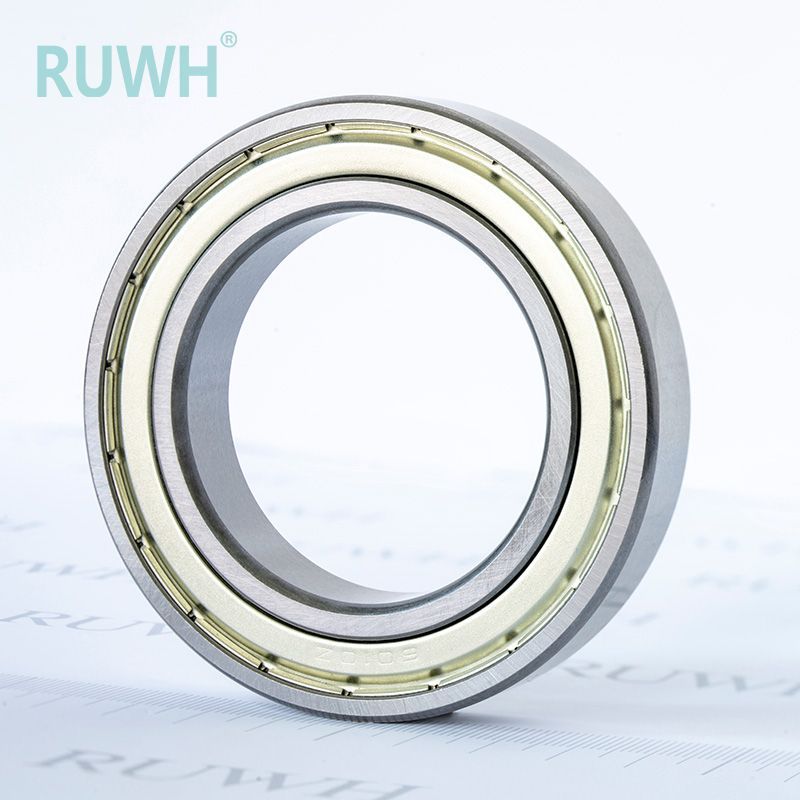

6010 2RS Bearing Describe
6010 2RS Bearing is a 60 series deep groove ball bearing produced by our company. RUWH is a famous brand of bearings in China, 6010 2RS/ZZ/OPEN metal shields bearing, size 50*80*16mm, precision according to customer requirements, material Gcr15, quality P6 Z3V3, P5 Z4V4. If you need to order, don't hesitate to contact us!
The 6010 is a 50 mm Ball Bearing that can be used in many rotary and factory automation applications. The 6010 Deep Groove Ball Bearings is an open style bearing. The 6010Z ball bearing is a single row raceway and single shielded. The 6010ZZ ball bearing has a single row raceway and it is shielded on each side. The B6010DDU, 6010DDU, 6010LLU, 6010-2NSE, 6010H2RS ball bearing are shielded by two rubber seals on each side. The 6010 50 mm Ball Bearing Inner Dimension 50mm X Outer Dimension 80mm X Width 16mm is an open style ball bearing designed for high rotational speeds and high dynamic loads.
Single row deep groove ball 6010 bearing 50mm inside x 80mm outside x 16mm width
Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.
6010 Bearing Dimensions
Inside diameter d: 50mm
Outside diameter D: 80mm
Width B: 16mm
6010 Bearing Basic Load Ratings
Dynamic: 22,9kn
Static: 16kn
6010 Bearing Speed Ratings
Reference speed: 18000 r/min
Limiting speed: 11000 r/min
RUWH 6010 2RS Bearing Features | Hot Sale |
| Suitable For Precision | |
| Low Noise | |
| Stable Quality | |
| High Speed | |
| Water Proof | |
| For Transmission Parts | |
| Efficient Operation | |
| Long-Lasting Silence | |
| Electric Motor Quality | |
| High Temperature Resistance | |
| Uniform Hardness | |
| Wear Resistance | |
| Corronsion-Resistant | |
| Long-Term Performance | |
| Tube Packing | |
| Single Box Packing | |
| Long Life | |
RUWH 6010 2RS Bearing Advantage | Emq Quality |
| 100% Fully Auto-Inspection | |
| Devliery In 48hours | |
| 11 Million Sets Per Month | |
| All Raw Materials Are Purchased And Controlled By Ruwh | |
| 4 Heat Treatment Lines | |
| Automatic Production Line | |
| Stable Raw Material Supplier | |
| 5s Management | |
| Iatf16949 Certificate | |
| Production And Inspection In Strict Accordance With The Process | |
| Professional After-Sales | |
| Sufficient Stock | |
| Warranty | |
| Free Replacement Within 1 Year | |
| Reply Within 48hours If There Is Problem | |
| The Motor Bearing Will Run For 30,000hours | |
| Maintenance Free Solutions | |
RUWH 6010 2RS Bearing Application | For Automotive |
| For Household Appliances | |
| For Pumps | |
| For Gearboxes | |
| For Electric Motors & Generators | |
| For Electric Power Tools | |
| For Office Equipments | |
| For Heavy Vehicles | |
| For Motorcycles | |
| For Diy & Garden Tools | |
| For Conveyors | |
| For Lifts | |
| For Sports & Exercise | |
| For Machineries |
| Certification: | ITAF16949 |
| Description: | deep groove ball bearing |
| MOQ: | 3000pcs |
| Price: | Negotiate |
| Packing: | Tube packing or single color box/carton/pallet |
| Delivery Time: | 48hours after receipt payment |
| Payment Terms: | L/C,T/T |
| Capacity: | 13 million per month |
| Cage: | SPCC |
| Grease qty: | 30% as usual |
| Long life: | Reduce replacement frequency and maintenance costs |
| Noise Grades | Z3,Z4 |
| Vibration Grades | V3,V4 |
| Precision | P6(ABEC-3),P5(ABEC-5) |
| Application: | Automotive,motors, pumps,household appliances, internal combustion engines, transport vehicles,gearboxes.transmission, instrumentation, roller skates,electric motors,electric Power Tools,DIY & Garden tools,Conveyors,lifts |
| Features: | simple configuration,high speed,less cefficient of friction,less vibration and noise |
