6009 2RS/ZZ/OPEN Bearing

6009ZZ Bearing is a 60 series deep groove ball bearing produced by our company. RUWH is a famous brand of bearings in China, 6009 2RS/ZZ/OPEN Large Stocks deep groove ball bearing, size 45*75*16mm, precision according to customer requirements, material Gcr15, quality P6 Z3V3, P5 Z4V4. If you need to order, don't hesitate to contact us!

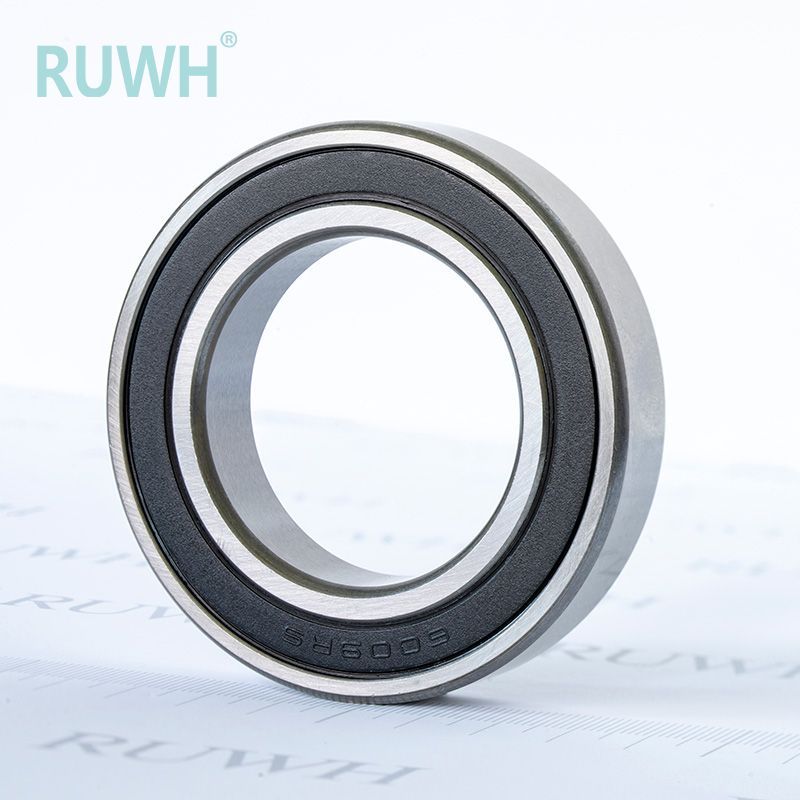

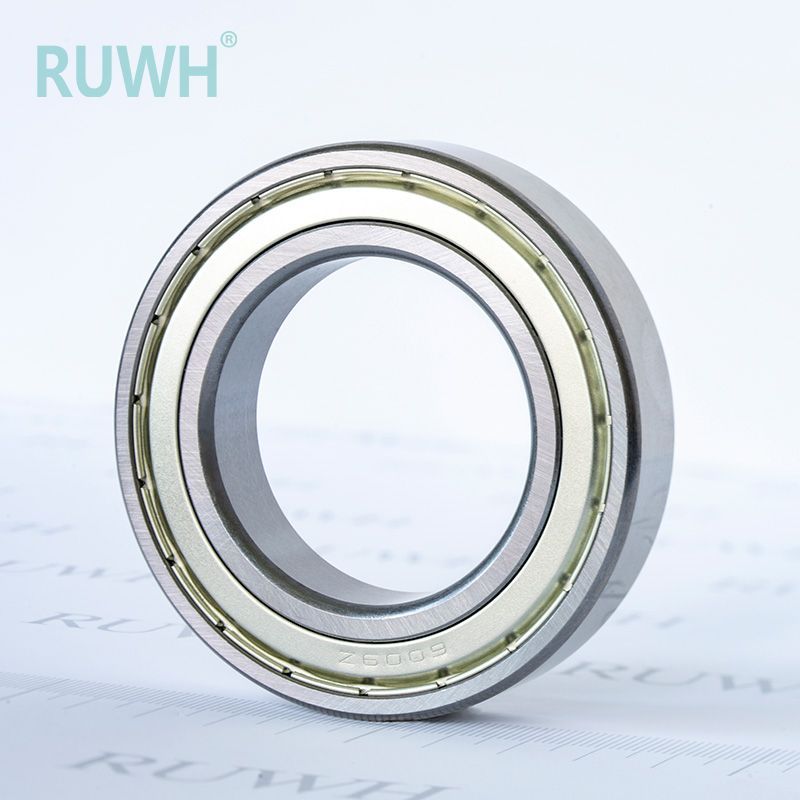

The 6009 is a 45 mm Ball Bearing that can be used in many rotary and factory automation applications. The 6009 Deep Groove Ball Bearings is an open style bearing. The 6009Z ball bearing is a single row raceway and single shielded. The 6009ZZ ball bearing has a single row raceway and it is shielded on each side. The B6009DDU, 6009DDU, 6009LLU, 6009-2NSE, 6009H2RS ball bearing are shielded by two rubber seals on each side. The 6009 45 mm Ball Bearing Inner Dimension 45mm X Outer Dimension 75mm X Width 16mm is an open style ball bearing designed for high rotational speeds and high dynamic loads.

Single row deep groove ball bearing 45mm inside x 75mm outside x 16mm width

Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.

Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.

Principal Dimensions
Inside diameter d: 45mm
Outside diameter D: 75mm
Width B: 16mm

Basic Load Ratings
Dynamic: 22,1kn
Static: 14,6kn

Speed Ratings
Reference speed: 20000 r/min
Limiting speed: 12000 r/min

Deep groove ball bearing production flow chart

Ordering Instructions for Deep Groove Ball Bearings

Ningbo Renhe Machinery Bearing Co., LTd is a China bearing manufacturer, please save our email(pauline@ruwhbearing.com) or send us an inquiry!
