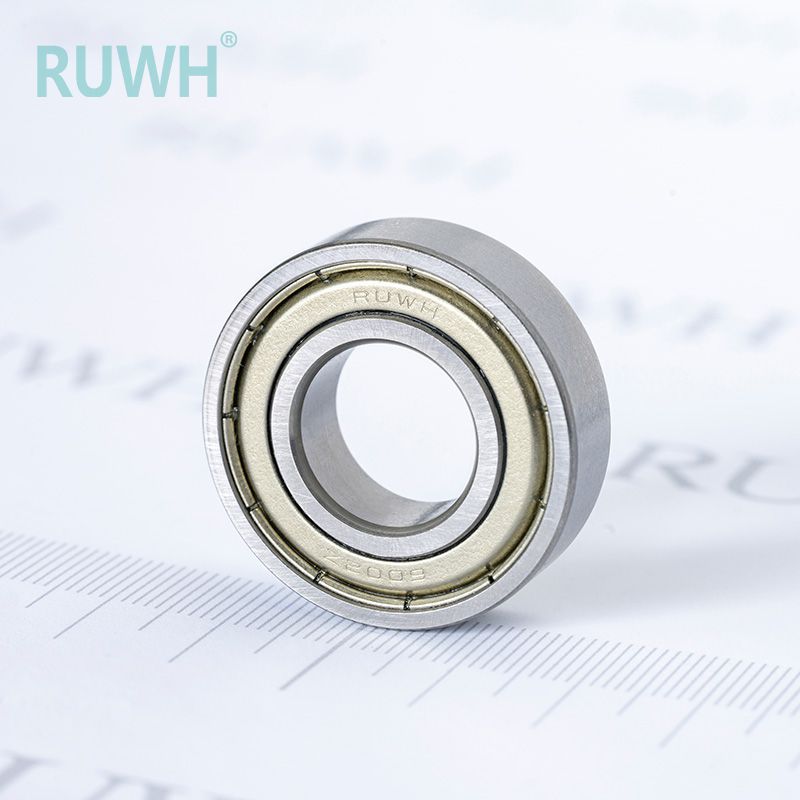

6005 2RS/ZZ/OPEN Bearing

6005 25x47x12 bearing is a 60 series deep groove ball bearing produced by our company. RUWH is a famous brand of bearings in China, 6005 2RS/ZZ/OPEN bearing by 100% fully auto-inspection, size 25*47*12mm, precision according to customer requirements, material Gcr15, quality P6 Z3V3, P5 Z4V4. If you need to order, don't hesitate to contact us!

The 6005 is a 25 mm Ball Bearing that can be used in many rotary and factory automation applications. The 6005 Deep Groove Ball Bearings is an open style bearing. The 6005Z ball bearing is a single row raceway and single shielded. The 6005ZZ ball bearing has a single row raceway and it is shielded on each side. The B6005DDU, 6005DDU, 6005LLU, 6005-2NSE, 6005H2RS ball bearing are shielded by two rubber seals on each side. The 6005 25 mm Ball Bearing Inner Dimension 25mm X Outer Dimension 47mm X Width 12mm is an open style ball bearing designed for high rotational speeds and high dynamic loads.

Single row deep groove ball 6005 bearing 25mm inside x 47mm outside x 12mm width

Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.

Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.

6005 2RS Bearing Dimensions
Inside diameter d: 25mm
Outside diameter D: 47mm
Width B: 12mm

6005 2RS Bearing Basic Load Ratings
Dynamic: 11,9kn
Static: 6,55kn

6005 2RS Bearing Speed Ratings
Reference speed: 32000 r/min
Limiting speed: 20000 r/min

Deep groove ball 6005 2RS Bearing production flow chart

Ordering Instructions for Deep Groove Ball 6005 2RS Bearings

Ningbo Renhe Machinery Bearing Co., LTd is a China 6005 2RS Bearing manufacturer, please save our email(pauline@ruwhbearing.com) or send us an inquiry!
